Name: TICODE 2D Barcode Scanner Devices Wired Bar Code Reader Support Reading Screen 1D 2D QR Code
Brand: Guangzhou TiCODE Electronics Technology LTD.
SKU: RiCODE TI6200HP
Availability: InStock

Home Products 2D Wired Barcode Scanner

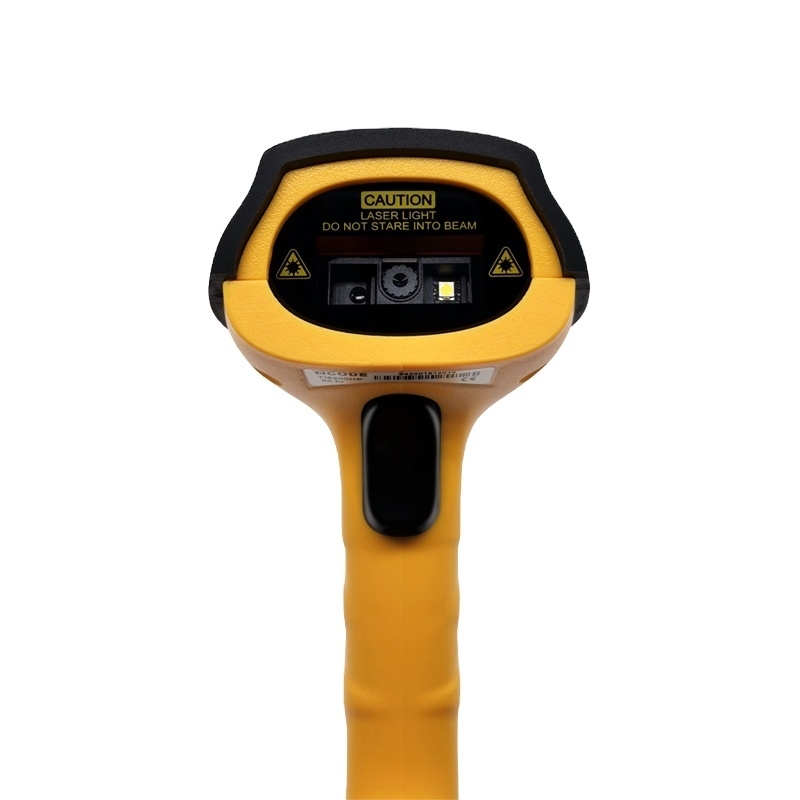

TICODE 2D Barcode Scanner Devices Wired Bar Code Reader Support Reading Screen 1D 2D QR Code

Product Details:

Place of Origin:	Guangzhou, China Guangdong
Brand Name:	RiCODE
Model Number:	RiCODE TI6200HP

Contact Now

Detailed Product Description

Private Mold:	Yes	Products Status:	Stock
Type:	Barcode Scanner	Scan Element Type:	2D
Colour Depth:	32 Bit	Interface Type:	Usb, COM, RS232
Max Paper Size:	A4	Optical Resolution:	≥ Mil 3
Scan Speed:	200	Warranty(year):	1-Year
After-sales Service:	Repair, Free Spare Parts, Call Center And On-line Technical Support	Software Development Kit (sdk):	Yes
Color:	Black	Application:	Industry
Product Name:	2D Wired Barcode Scanner	Interface:	USB, USB-COM, RS232
Light Source:	2D Imager	Color:	Yellow+Black
Scan Mode:	Manual Trigger, Auto-detective	Resolution:	3 Mil
Decode Capabilities:	1D + 2D + QR Code	Material:	Dual-color ABS/PC+TPU; Single-color ABS+PC; Transparent: PC;

Parameter

Physics Parameters
Input Voltage	DC5V , ±0.25V
DC Current	360mA(working); 72mA(standby)
Power	1.8W(working); 0.36W(standby)
Cable Length	2 meters
Indicator	Buzzer & LED Indicator
Interface	USB, USB-COM, RS232
Shield Materials	dual-color ABS/PC+TPU; single-color ABS+PC; transparent: PC;
Performance Parameters
Module	2D Imager 1280*960
Lighting Source	White LED
Aiming Line	Red color
Code Contrast	≥25%
1D code resolution	≥3mil
2D Code types	QR Code, MicroQR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode etc.
1D Code types	UPC-A, UPC-E,EAN-8, EAN-13, EAN-ISBN/ISSN, Code 39, Code 39(Full ASCII), Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5,Codabar, Code 128, Code 93, Code 11 MSI/Plessey, UK/Plessey, UCC/EAN 128, China Post Code, GS1 Data Bar (formerly RSS) etc.
Angle Tolerance	Skew ±72°, Pitch ±72°, Roll 360°
Mode setting	Set by scanning functional Code
Dust & Water proof	IP54
Environment Parameters
Environment Temperature	-18°C ~55°C (working); -40°C ~60°C (storage)
Environment Humidity	5~95% (Non-condensing)
Certification
CE RoHS FCC
