Name: Factory Price Waterproof IP68 Handheld 1D 2D Scanning QR Reader Industrial Wired Barcode Scanner
Brand: Guangzhou TiCODE Electronics Technology LTD.
SKU: TI2820HD
Availability: InStock

Home Products 2D Wired Barcode Scanner

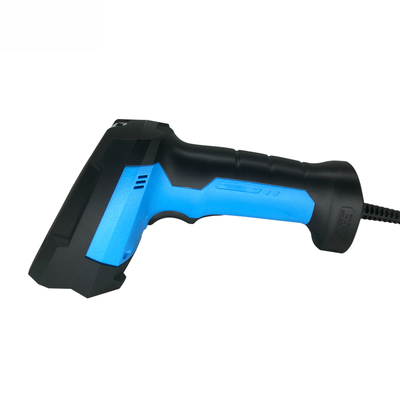

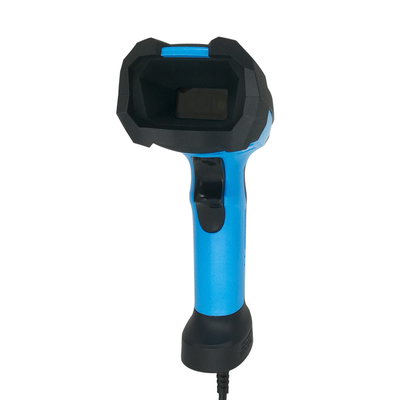

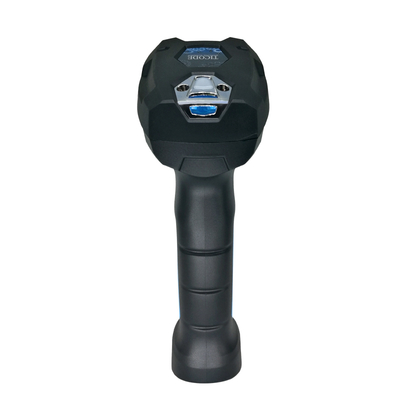

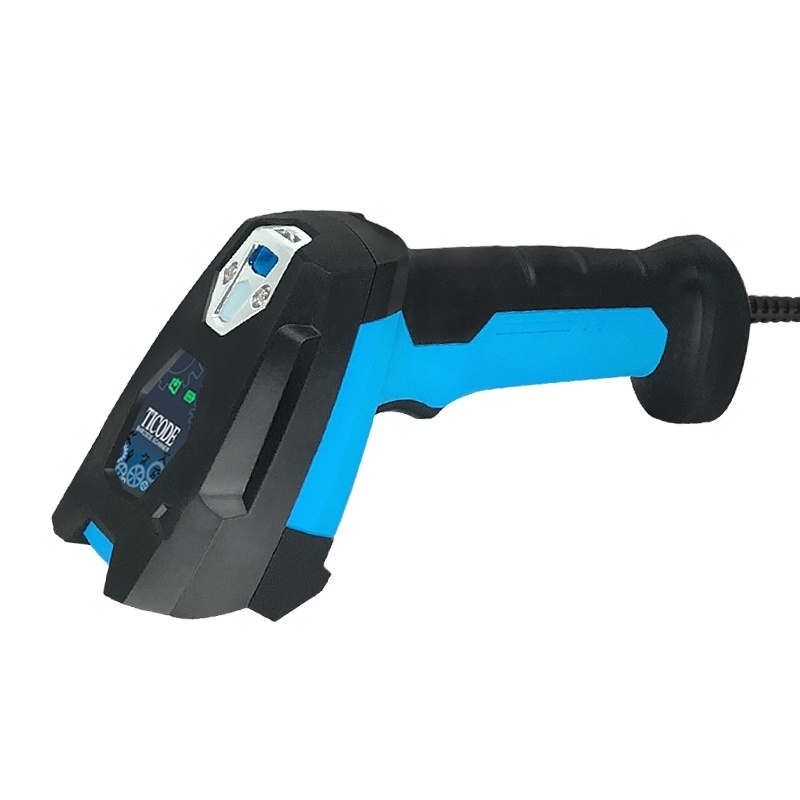

Factory Price Waterproof IP68 Handheld 1D 2D Scanning QR Reader Industrial Wired Barcode Scanner

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	RiCODE
Model Number:	TI2820HD

Contact Now

Detailed Product Description

Private Mold:	Yes	Products Status:	Stock
Type:	Barcode Scanner	Scan Element Type:	CMOS
Colour Depth:	32 Bit	Interface Type:	Usb, COM, PS/2, RS232
Max Paper Size:	A4	Optical Resolution:	Million Pixels
Scan Speed:	150	Warranty(year):	1-Year
After-sales Service:	Repair, Free Spare Parts, Call Center And On-line Technical Support	Color:	Green, Blue, Yellow
Product Name:	Wired 2D Barcode Scanner	Application:	Barcode Reading
Light Source:	White LED	Interface:	USB, RS232, P/S2
Decode Capabilities:	1D + 2D + QR Code	Resolution:	Million Pixels
Color:	Green + Red	Keywords:	IP68 Barcode Scanner
Trigger Mode:	Automatic Sensing & Manual

Parameter

Physical Parameters
Model Name	Ti2820HHD
Input Voltage	DC5V , ±0.25V
DC Current	420 mA(working); 120mA(standby)
Indicator	Buzzer & LED Indicator
Interface	USB, RS232, P/S2
Shield Material	dual-color ABS/PC+TPU; single-color ABS+PC; transparent: PC;
Performance Parameters
Module	2D Imager 1280*960
Code Contrast	≥20%
Resolution	≥3mil, Linear 2500pixels
Codes range	1D, 2D, DPM, monitor-displayed
2D Code types	QR Code, MicroQR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode etc.
1D Code types	UPC-A, UPC-E,EAN-8, EAN-13, EAN-ISBN/ISSN, Code 39, Code 39(Full ASCII), Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5,Codabar, Code 128, Code 93, Code 11 MSI/Plessey, UK/Plessey, UCC/EAN 128, China Post Code, GS1 Data Bar (formerly RSS) etc.
Angle Tolerance	Skew ±70°, Pitch ±70°, Roll 360°
Mode setting	Set by scanning functional Code
Shock Resistance	Withstand multiple drops from 2m to comcrete surface
Dust & Water proof	IP68
Environment Parameters
Environment Temperature	-20°C ~55°C (working); -40°C ~70°C (storage)
Environment Humidity	5~95% (Non-condensing)
Environment Luminance	0 ~ 100,000 Lux
Certification
CE RoHS FCC IP68
