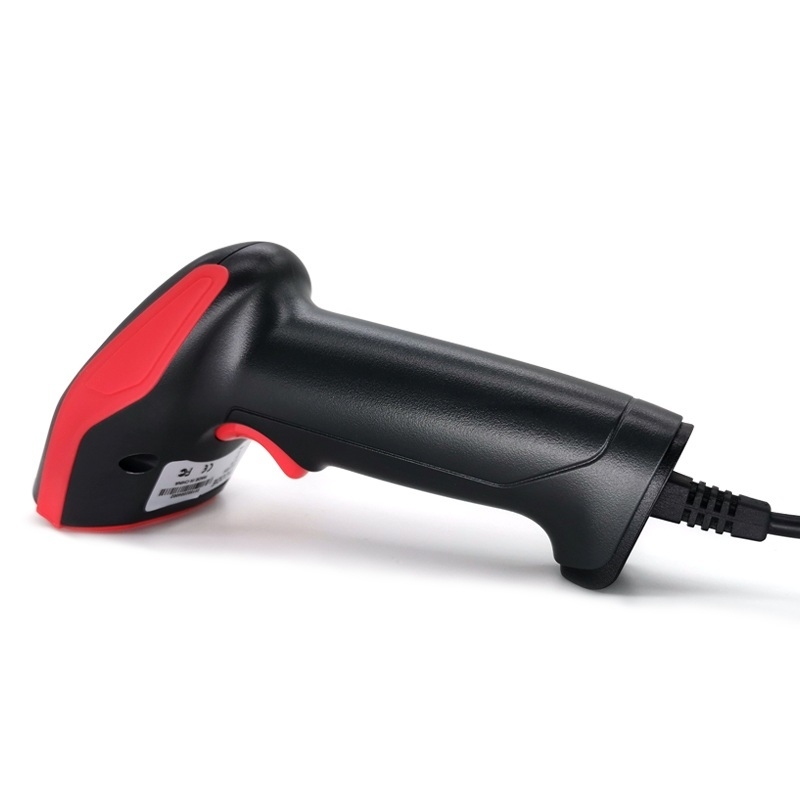

Name: Cost-effective Handheld USB/COM/RS232 Wired 1D/2D Barcode Scanner AK18H
Brand: Guangzhou TiCODE Electronics Technology LTD.
Availability: InStock

Home Products 2D Wired Barcode Scanner

Cost-effective Handheld USB/COM/RS232 Wired 1D/2D Barcode Scanner AK18H

Product Details:

Place of Origin:	Guangzhou, Guangdong China
Brand Name:	RiCODE

Contact Now

Detailed Product Description

Private Mold:	Yes	Products Status:	Stock
Type:	Barcode Scanner	Scan Element Type:	2D
Colour Depth:	32 Bit	Interface Type:	Usb, COM, RS232
Max Paper Size:	A4	Optical Resolution:	≥5 Mil
Scan Speed:	200	Warranty(year):	1-Year
After-sales Service:	Repair, Free Spare Parts, Call Center And On-line Technical Support	Software Development Kit (sdk):	Yes
Color:	Red, Black	Application:	Commercial
Product Name:	2D Wired Barcode Scanner	Light Source:	White LED
Interface:	RS232/USB/COM	Scan Mode:	Manual+Auto-sense
Scanning Range:	Skew ±45°, Pitch ±45°, Roll 360°	Resolution:	≥5mil
Color:	Red+ White	Decode Capabilities:	1D + 2D + QR Code
Indicator:	Two-color LED+Buzzer

Product Paramenters

Model	AK18H
Input Voltage	3.3V DC, ±0.17V
Power	0.45W(working); 0.19W(standby)
DC Current	135mA(working); 58mA(standby)
Module	Imager(2D)
Lighting Source	White LED
Aiming Line	Red color
Code Contrast	≥30%
1D code resolution	≥5mil
Scanning Area	28° * 21.5°（horizontal*vertical）
2D Code types	QR Code, Data Matrix, PDF417, Micro QR, Aztec Code
1D Code types	UPC-A, UPC-E,EAN-8, EAN-13, EAN-ISBN/ISSN, Code 39, Code 39(Full ASCII), Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5,Codabar, Code 128, Code 93, Code 11 MSI/Plessey, UK/Plessey, UCC/EAN 128, China Post Code, GS1 Data Bar (formerly RSS) etc.
Mode setting	Set by scanning functional QR Code
Angle Tolerance	Skew ±45°, Pitch ±45°, Roll 360°
Interfaces	USB, RS232, PS2
Environment Temperature	-20°C ~60°C (working); -40°C ~60°C (storage)
Environment Humidity	5~95% (Non-condensing)

Features

1. Ergonomic design;

2. High Cost-effective;

3. Auto-sensing function;

4. Supports all common 2D and 1D code;

5. Specially designed for commercial usage;

6. Support printed or monitor-displayed codes.

Applications

*Retail

-Point of Sale Checkout

-Shelf Replenishment

-Goods receving

-inventory

* Commercial Services

-Postal

-Banks

-Public Administration

-Utilities

Product Description

Company profile

Packing & Shipping

FAQ

1. Why choose us?
* Passionate, experienced and highly-educated R & D and sales team;
* Reasonable price with reliable hardware, skillful and careful assembly;
* Strict quality assurance and quick aftersales service;
* Lifetime technical support, can come with customized setting.

2. Are OEM and ODM available?
* Yes, they are. As a professional manfacturer, we offer OEM and ODM service.

3. How about your product warranty?
* We offer one-year warranty upon delivery.

4. How about the aftersales support?
* We will offer on-time response for online enquiries from oversea users. Please feel free contact us by email, Ali-Trade, WhatsApp, WeChat and SKYPE.

5. Payment method?
* Now T/T and PayPal are available, more is coming.
